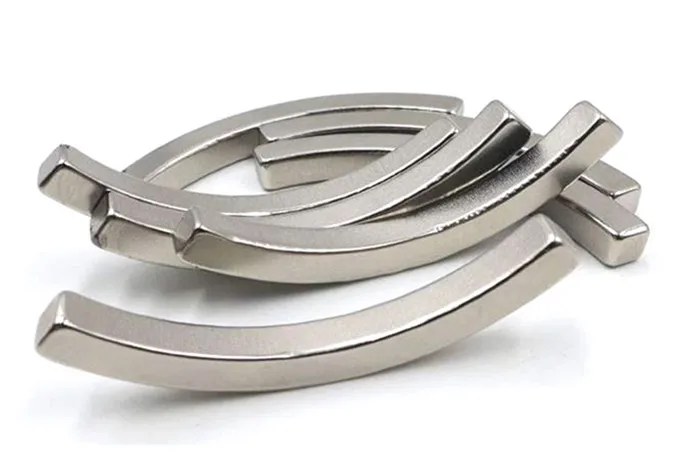

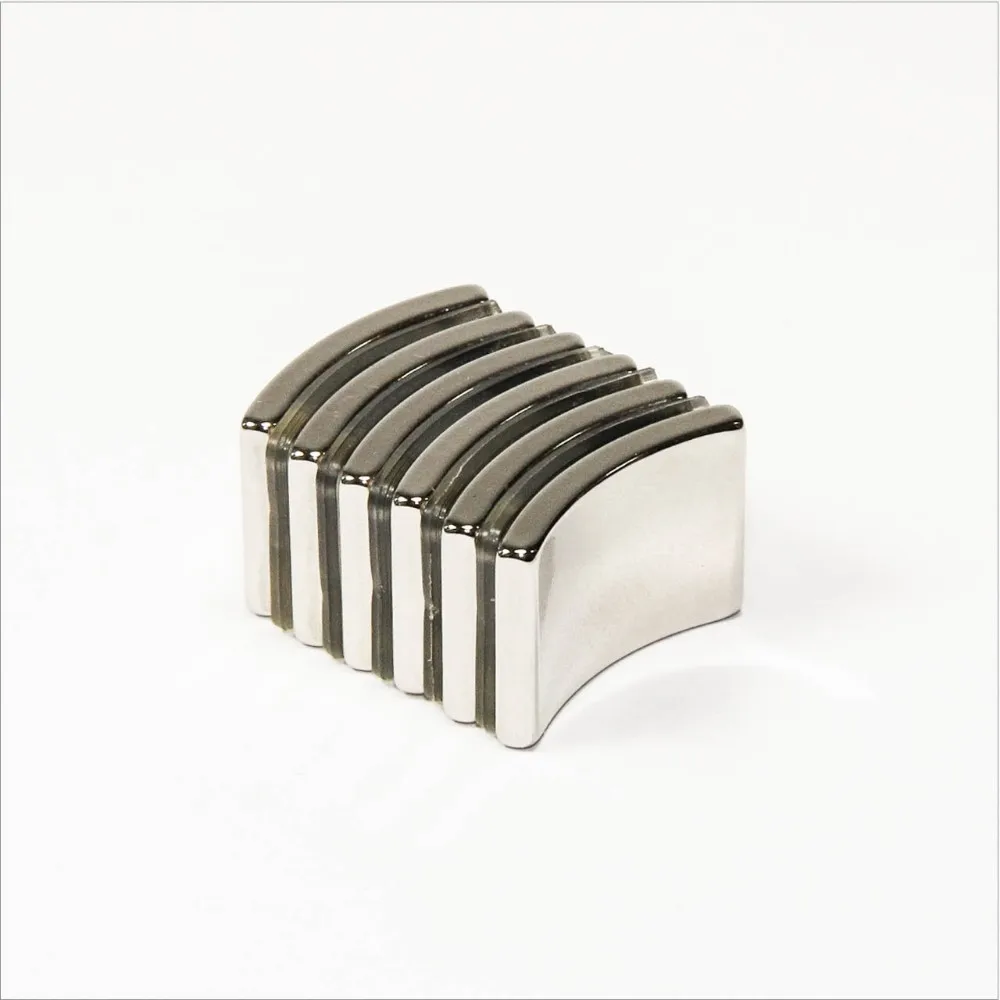

Industrial Arc Magnet N52 Semi Circle Neodymium Magnets for Motor

FOB Reference Price:Get Latest Price
$0.10 - $5.00 / Piece | 50 Piece/Pieces (Min. Order)
Lead Time:
Quantity(Pieces) 1 - 100000 >100000
Est. Time(days) 15 Negotiable
Customization:
Customized packaging (Min. Order: 100000 Pieces)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanxi, China
Brand Name:
Jin Tong
Model Number:
JT-200*07
Type:
Permanent
Composite:
NdFeB Magnet
Shape:
ARC, Arc;segment;half circle
Application:
Industrial Magnet
Tolerance:
±5%
Processing Service:
Cutting, Moulding
Grade:
N35-N52( M, H, SH, UH, EH series ), N35-N52
Max Working Temperature:
80℃-230℃
Telarence:
+/-0.05mm
MOQ:
50pcs
Certificate:
ISO9001:2000,SGS,RoHS
Sample:
for free
Lead Time:
10~15days
Material:
Neodymium magnet
Size:
Customized magnet
Supply Ability
Supply Ability:
1000 Ton/Tons per Year neodymium magnets
Packaging & Delivery
Packaging Details
We offer standard magnetic isolation package, first small box with foam,outside is metal and foam.
The magnetic field at the surface of the box less than 10 gauss. This is consistent with the requirements of air transport.
Port
Guangzhou/Shenzhen
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 100000 >100000
Est. Time(days) 15 To be negotiated
If unable to find the magnet shape you want here? Pls contact us for customization.
Shape, size, performance can be customized.

Neodymium magnets are member of the rare earth magnet family. They are called "rare earth" because neodymium is a member of the "rare earth" elements on the periodic table. Neodymium magnets are the strongest of the rare earth magnets and are the strongest permanent magnets in the world.
Product Description
Product Name
Industrial Arc Magnet N52 Semi Circle Neodymium Magnets for Motor
Material
Neodymium Magnet/Permanet Magnet
Size
Various kinds or according to customers' request
Shape

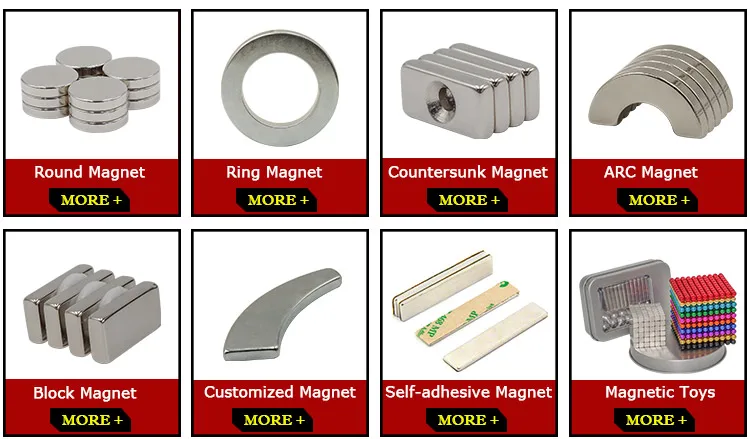

Disc, Block, Ring, Countersunk, Segment, Trapezoid, Irregular shapes are available, Or Customized Shapes
Grade
N35-N52,  N35M-N50M,  N33H-N48H,  N30SH-N35SH and so on
Tolerance in size
+/-0.05 mm
Direction of magnetisation
Through the thickness or through the diameter



Applications
1. Electronic areas: speakers, headphones, acoustics, sensors and so on.
2. Motor areas: generators, servo motors, micro-motors, vibration motors, elevator motor and so on.
3. Clean Tech Energy : Water flow enhancement, wind turbines.
4. Health care: MRI, medical treatment equipment.
5. Other industries: electric doors and windows, electric vehicle, electric bicycles, computer, phone, boxes, magnetic tools, notebook and so on

Details Images
1. Material

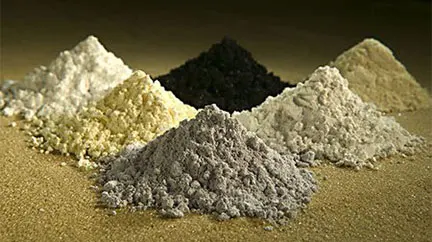

Rare earth Powder, Cost-effective The raw materials are neodymium, iron and boron. Starting from material selection, high quality ndfeb strong magnetic materials are manufactured with high quality rare earth neodymium materials and various mixed materials.

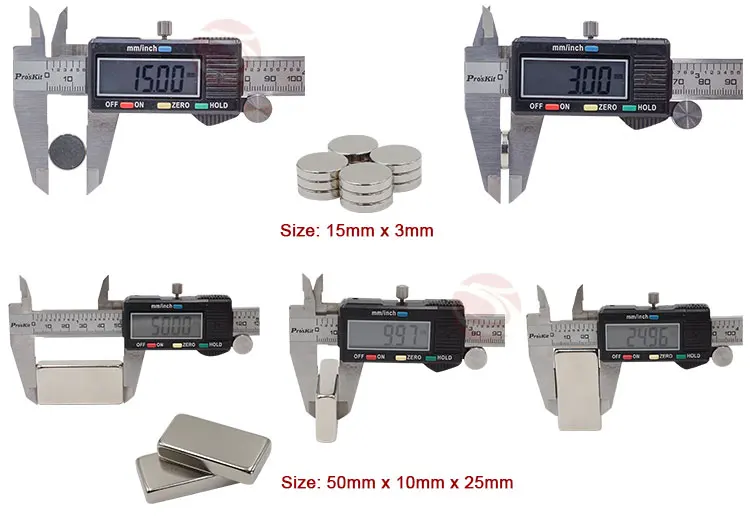

2. Size Tolerance

+/-0.05mm
a. Before grinding and cutting, we inspection the black product tolerance.
b. Before and after coating, we will inspection the tolerance by AQL standard.
c. Before delivery, will inspection the tolerance by AQL standard.
3. Customized Magnets

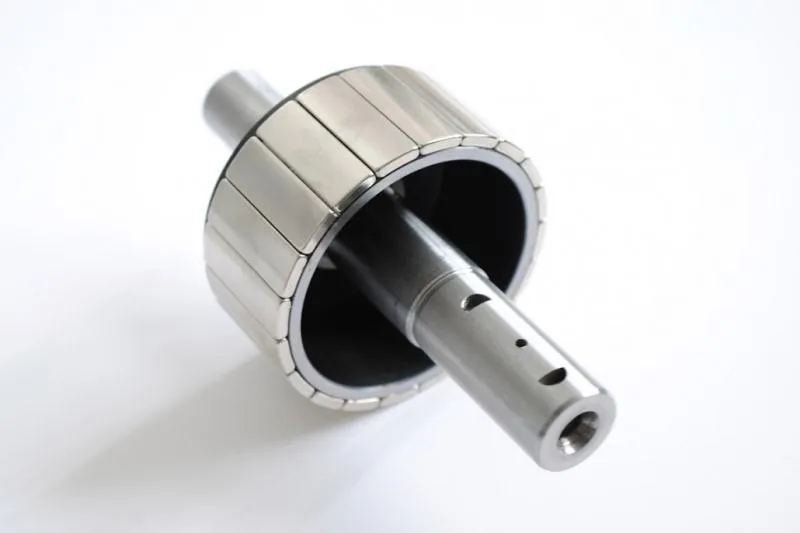

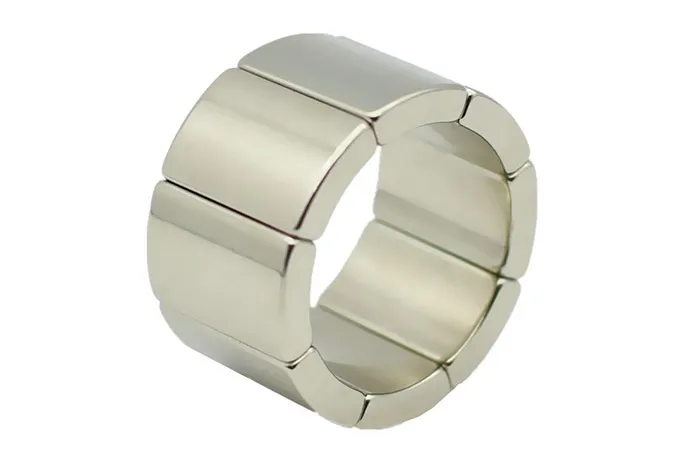

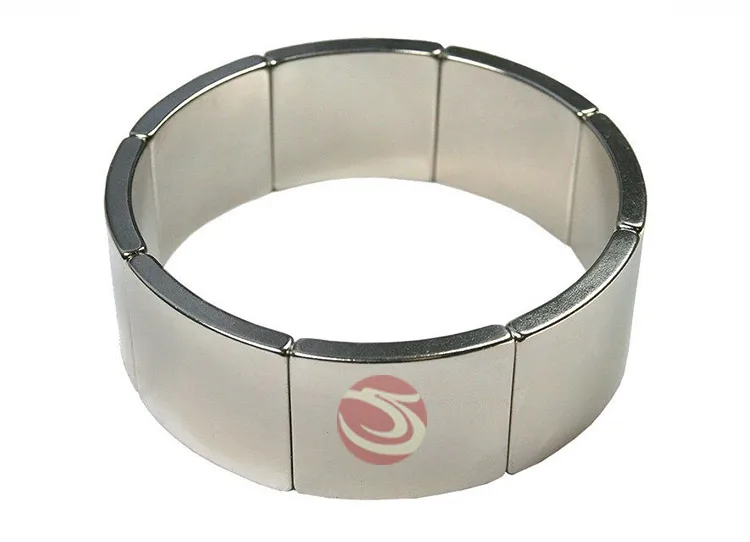

Strong Neodymium Arc magnets are used in building motors, generators or magnetic bearing. Since neodymium magnets N35,N36,N42,N45,N50 & N52 are much stronger than other magnets, using strong neodymium magnets can build much more powerful motors, generators.

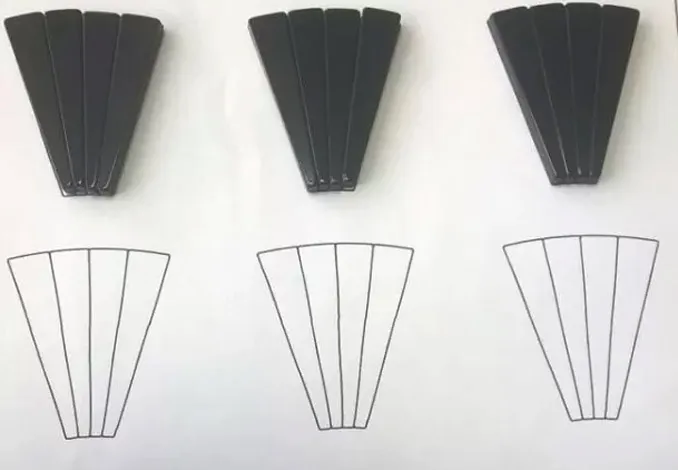

Cusomized Magnet -1
Cusomized Magnet -2
Cusomized Magnet -3
Motor have different designed types, that will ask for different shape of magnet.

What kind of service we can offer?
Full Depth Customization
(Size, Shape and Performance can be customized according to your requirements.)

1. Pls send us your drawings, our techinician will check your drawings firstly.
2. Pls tell us how many piece you need as sample test. We would like to support your project, but need to charge you smaple fee and the delivery fee.
3. The normal sample production time for special shape is 15 ~20 days. the block and the disc , ring just need 10 days.If magnets in stock , then will send smaples to you in 1~ 2 days.

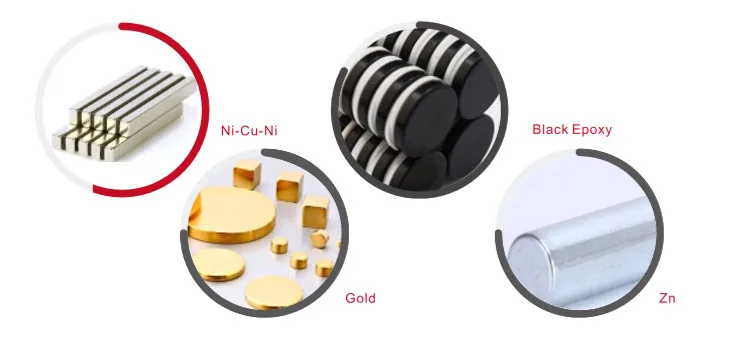

4. Surface Treatment
There have many plating options like Nickel coating, Zinc, Gold, Black Epoxy, White Epoxy and so on.
Zn and Nickle coating is the most popular coating.
After plating, has a good rust, corrosion resistance.

Different coatings for your choose
Coating
Suface Color
Coating Thickness
Application
Salt Spray Test
Zn
Blue White
5 ~ 10 Microns
Have a high anti-corrosion ability
> 24 hr
Nickle
Glowing Sliver
15 ~ 30 Microns
Applicable to a more harsh enviroment
> 48 hr
Epoxy
Black
15 ~ 30 Microns
Toy, insulation machinery
> 300 hr
Gold
Golden
5 ~ 10 Microns
Decorative, heathy-care
> 24 hr

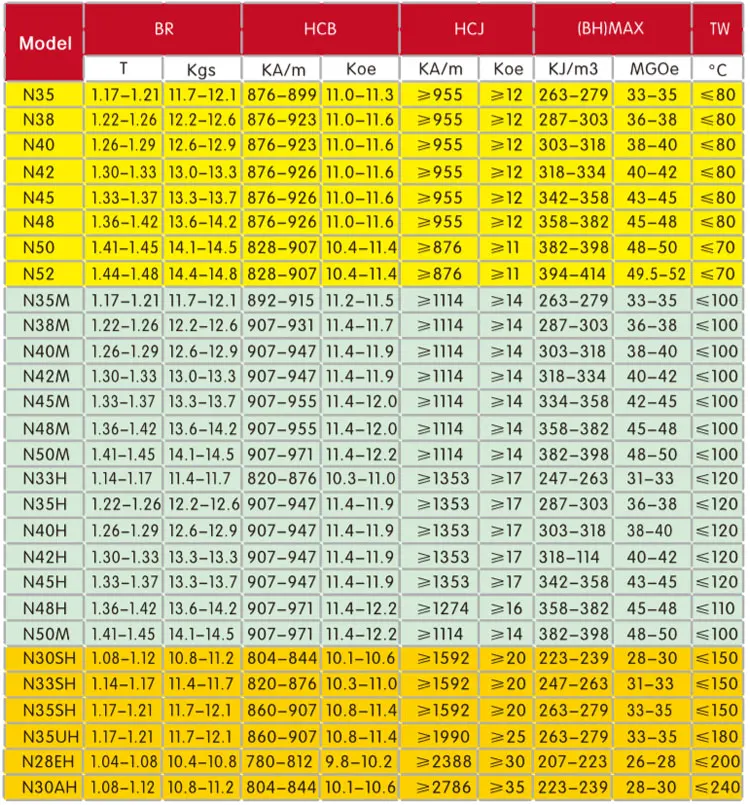

How Strong is Neodymium Magnet?
-- Different NdFeB Magnet Parameters:
Magnet Application:
Used in electronic, electrical machinery, medical equipment toys packaging, metal machinery, aerospace and other fields, The more common permanent magnet motor, speaker, magnetic separator, computer disk drive, household appliances, digital cameras, mobile phones, stationery, handicrafts, magnetic resonance imaging equipment etc.
Qaulity Control

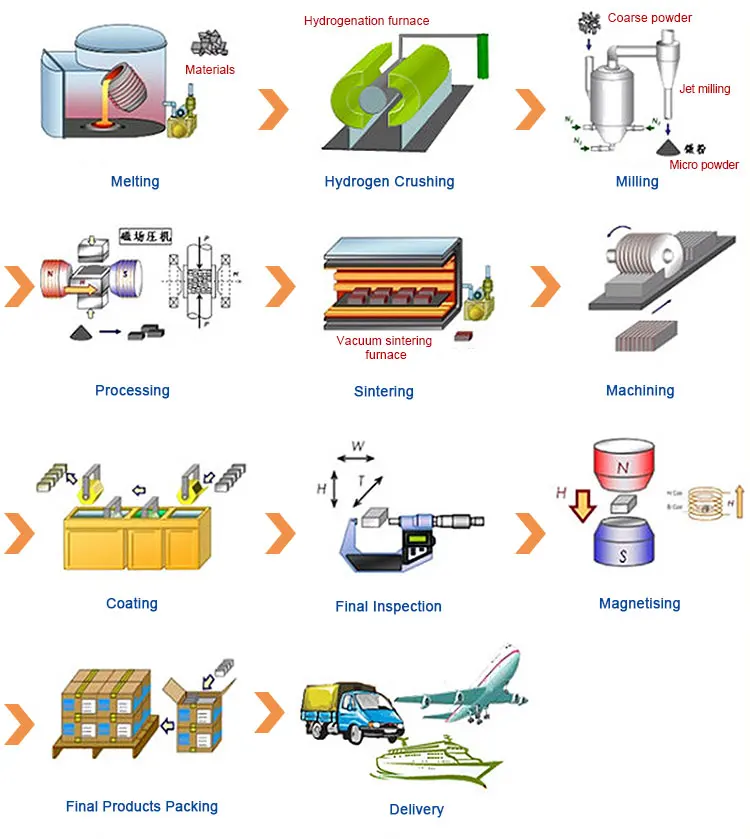

How Neodymium Magnet is Made ?
-- Production Process:

Product Package:


1. Magnet is a special goods for delivery, and they have to make special packing before transportation.
2. Antimagnetic Packaging / Neutral Packing / Custom-make Welcome.

Magnet is a brittle product, with strong magnetic force. Improper handling and shaking may cause damage during transportation, so professional package is very important.
Jin Tong adopts the strictest package, and our products could be shockproof and waterproof, besides satisfy magnetic isolation requirement. Our package is totally suitable for sea and air transportation, which makes our products could pass customs inspection fluently.

Customer Reviews
Exhibition
CWIEME BERLIN 2020
We will join in CWIEME BERLIN on 30th June 2020 in MESSE BERLIN and our booth No. is 52C01.Welcome come to visit us.


CWIEME BERLIN every year, Germany
CWIEME CHICAGO every year, USA
CANTON FAIR every year, China
You're more than welcomed to visit us at above exhibitions every year. We look forward to a face to face meeting with you.

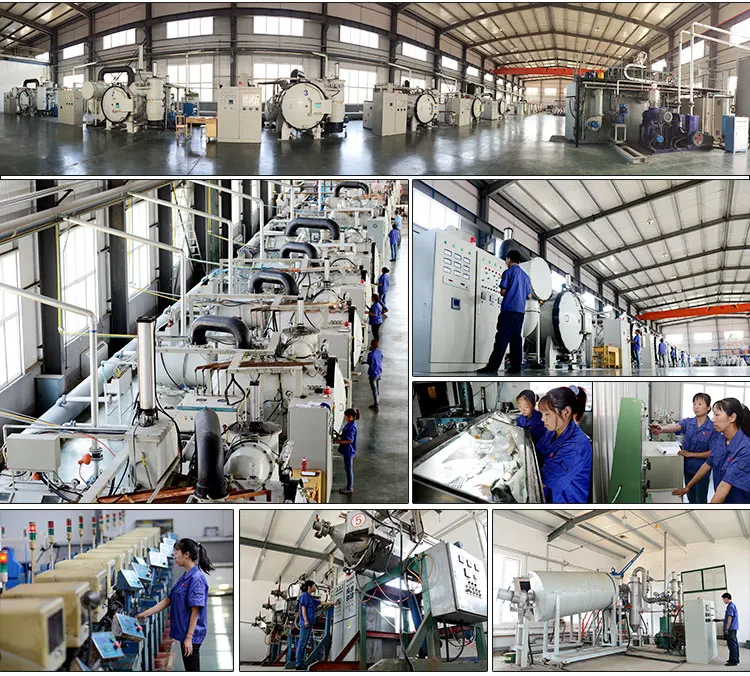

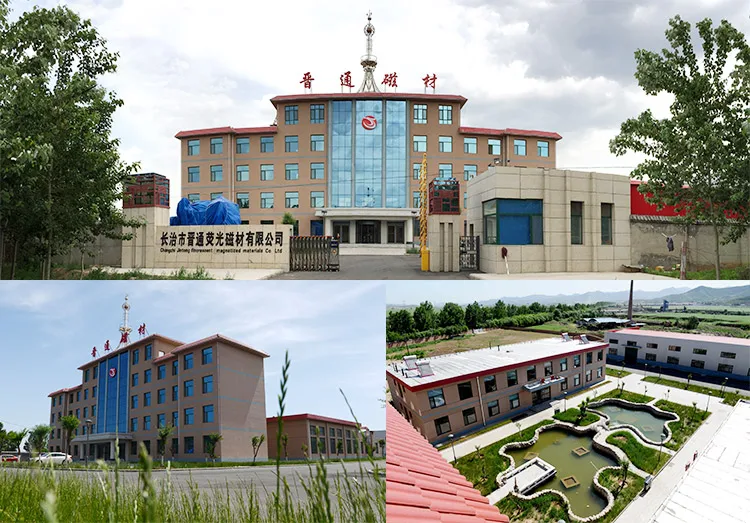

Company Profile
Jin Tong magnet was established in 1995, with 25 years history in NdFeB magnets industry.

-- In 2013, invested USD30,000,000 to establish new factory as production base with 35000 SQM in Changzhi city.
-- Established our branch companies in Shenzhen & Guangzhou & Dongguang province for fast service.
-- We could supply full turnkey production line for customers. Our factory is equipped with efficient welding furnace & vacuum rapid condensation furnace etc.

All the magnet products complies with ISO9001, MSDS, ROHS and SGS standards. Our magnet products have been exported to USA, Europe, Southeast Asia and other overseas market.

With more than 500 sets advanced production instruments.
Production under oxygen-free environment for whole process.
Do not generate any waste gas or water or residue during production.
Manufacture cylinder, ring, block, arc shape or other customized shape NdFeB magnets.
Including 6 series, 28 varieties, more than 3000 kinds of specifications.
Cover N25 ~ N52 such normal strong grade and M, H, SH, UH, EH, AH high temperature resistance grade magnets.
Now we occupy a considerable market share in Chinese market. Especially for loadspeakers supplying market.
FAQ
Q1: What is a neodymium magnet?
A: Neodymium magnet is also named NdFeB magnet, and its chemical formula is Nd2Fe14B. Neodymium magnet is a man-made permanent magnet, and it is a magnet with the strongest  magnetism under normal temperature at present.

Q2: What is the difference between sintered neodymium magnet and bonded neodymium magnet?
A: Neodymium magnet includes sintered neodymium and bonded neodymium magnet. Bonded magnet actually is made through injection moulding technology, and sintered neodymium magnet is made through high temperature heating under vacuum condition. The magnetism of sintered neodymium is much stronger than the magnetism of bonded neodymium magnet.

Q3:Are you a factory or trade company?
A: We are specific in produce of neodymium magnet over 24 years and now has 2 factories in China.

Q4: Could i visit your factory, where is your factory?
A: Welcome,Our main factory located at Changzhi city, Shanxi province, The other branch plant locate at Guangdong province.

Q5: Can you supply custom magnets service?
A: Yeah, we can customized any sizes of magnet based on your demand.

Q6: What is your sample policy?
A:If the round magnet diameter below 30*3mm are available, we could provide 20-30 pcs samples for free to you, you just need to pay the delivery fee.

Q7: What is your terms of payment?
A: Alibaba Trade Assurance / T/T / Paypal. 100% in advance.(less than 5000$,100%payment, more than 5000$, 40% deposit, 60%balance)

Q8: How do you control the quality?
1) We have been monitoring from raw materials to the whole production processes
2) various advanced testing instruments to ensure the quality stability
3) We have QC Department ensures an ongoing development and maintenance of high quality standards
4) Check the packing before delivery
